Interactive Flat Panel

Sangat cocok untuk Instansi sekolah menjadikan mengajar lebih modern fun dan elegan serta mempermudah presentasi dan dapat juga di gunakan untuk perkantoran zoom meeting presentasi dan lain-lain.

Download Katalog

Product Details



Kondisi: Baru

Min Pemesanan: 1 Buah

Interactive Flat Panel

Sangat cocok untuk Instansi sekolah menjadikan mengajar lebih moderen fun dan elegan serta mempermudah presentasi dan dapat juga di gunakan untuk perkantoran zoom meeting presentasi dan lain-lain.

Main Features:

  • Excellent slim design with aluminum alloy edging.
  • Ultra high 4K resolution and new original panel with TFT LED backlight.
  • Sensitive 20 points IR touch.
  • Built in professional Anti-Glare glass (optional).
  • Built in wireless projection and reverse touch control, support mobile and PC.
  • EShare wireless transmitter for wireless projection, plug and play (optional).
  • Windows PC can support Webcast function, PC can install one Eshare software, then can wireless project screen to interactive board screen, and can reverse touch control.

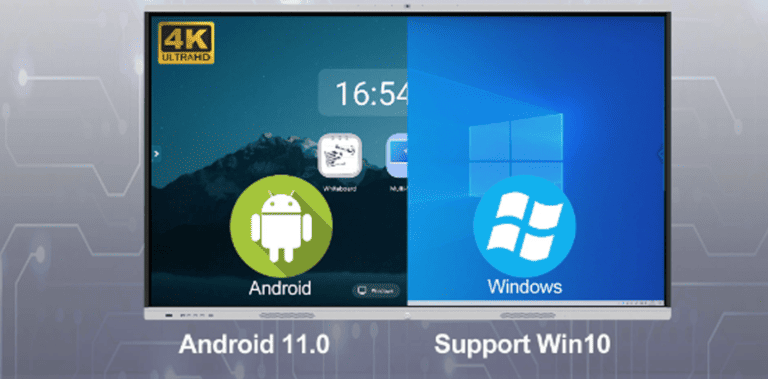

  • Dual OS: Android OS and Windows OS available.
  • Built in professional OPS computer, can customize CPU, RAM and storage(optional).
  • Built in professional whiteboard software, full 4K resolution user interface and GIF icons.
  • Built in annotation function, can annotate on both Android and Windows OS, supportQR scanning to download to mobile phone.
  • Whiteboard software support 2/3/4 split screen writing simultaneously.
  • Magnetic touch pen can be absorbed on the board’s front frame.
  • VC module: 12M/48M pixels camera and 13M pixels motion and audio tracking camera with 8 sound arrays system (optional).
  • CE,ROHS, TELEC, PSE, FCC, HDMI and ENERGY STAR certified.
  • ISO9001 and ISO14001 certified.

Specifications

Display

Display Screen65/75/85/98/100 inch” LG brand
Panel back lightTFT-LED
Display Ratio16:9
Color10bit (16.77Million)
Display Area1895.04*1065.96mm
Resolution3840*2160 (UHD)
Brightness500cd/m2
Contrast4000:1
Response Time5ms
View Angle178° left and right, up and down
Life timeOver 50,000hrs

Performance

OPS PC CPUWindows Max: Intel quad Core i5 CPU, 3.2G Hz, 4G RAM/128G SSD (can customize)
Android CPUARM Cortex A53/1.5 GHz/2G RAM WITH 16G SD card
MemoryKingston DDR 4G for Windows PC;
HDD128G SSD for Windows PC
Main BoardIndustrial board
Graphic CardIntegrated Graphics Card, Support UHD 4K Resolution.
Network Card10/100/1000M adaptive card
WIFI802.11A/g/n(2.4/5GHZ)
Windows OSWindows 7,8.1 and 10 trial version
Android OSAndroid 5.0 and above

Interface

USBUSB*4
COMRS232 COM*1
HDMI InputHDMI*3
AV InputAV*1
VGA InputVGA*1
MIC Audio InputMIC Audio*1
HDMI OutputHDMI*1
VGA OutputVGA*1
AV OutputAV*1
Line Audio OutputLine*1
Touch USB PortTouch USB Port*2
Network
RJ45*2, WIFI*2

Touch

Touch TypeInfra-red
Points10 points (can customize 20 points)
Response TimeLess than 5ms
Resolution32767 * 32767
Position Accuracy±1.5mm
CommunicationUSB2.0
Life TimeOver 60,000,000 touches

Whiteboard Software

IR touch support touch by stylus or finger?Touch by finger?Touch by stylus?Touch by finger and stylus sync

Windows OPS Configuration (Optional)

Client can choose from the Pro, Max or Maxplus version for the OPS, we also can customize other configurations, pls check with sales separately. OPS configuration options Pro version: Intel I3 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD. Max version: Intel I5 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD. Maxplus version: Intel I7 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD. Graphics card Intel® HD Graphics card integrated WIFI IEEE802.11an 2.4GHz Windows OS Windows 7, 8.1, 10 trial version

Pengoprasian Mesin Sangat Mudah

Garansi Seumur Hidup untuk Software

Garansi Service dan Sparepart 1 Tahun

Instalasi Mesin Rapih dan Profesional

Tempat Service Center Jelas dan Luas

Pertanggung Jawaban Produk After Sales
